SKU: JP-L02M100-1

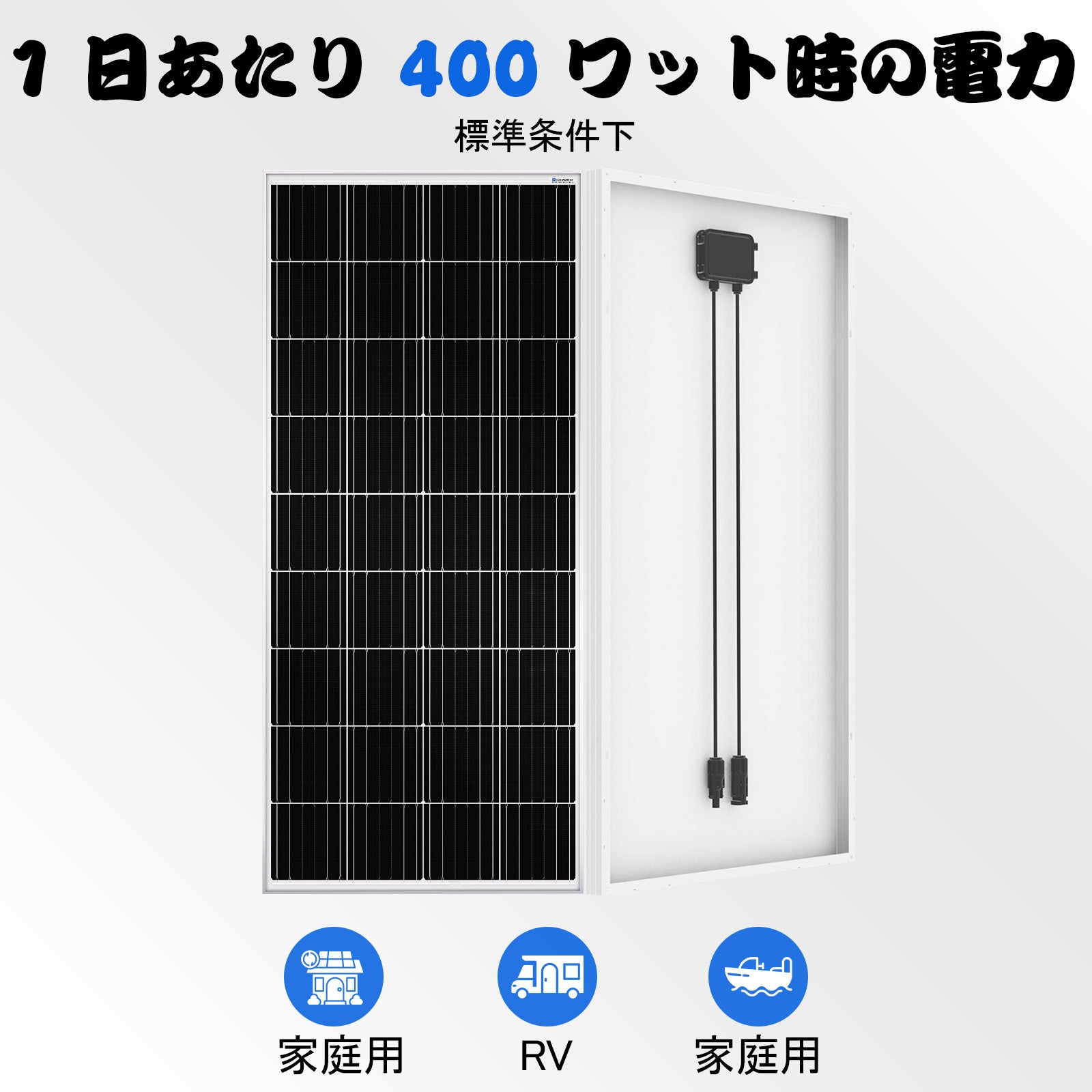

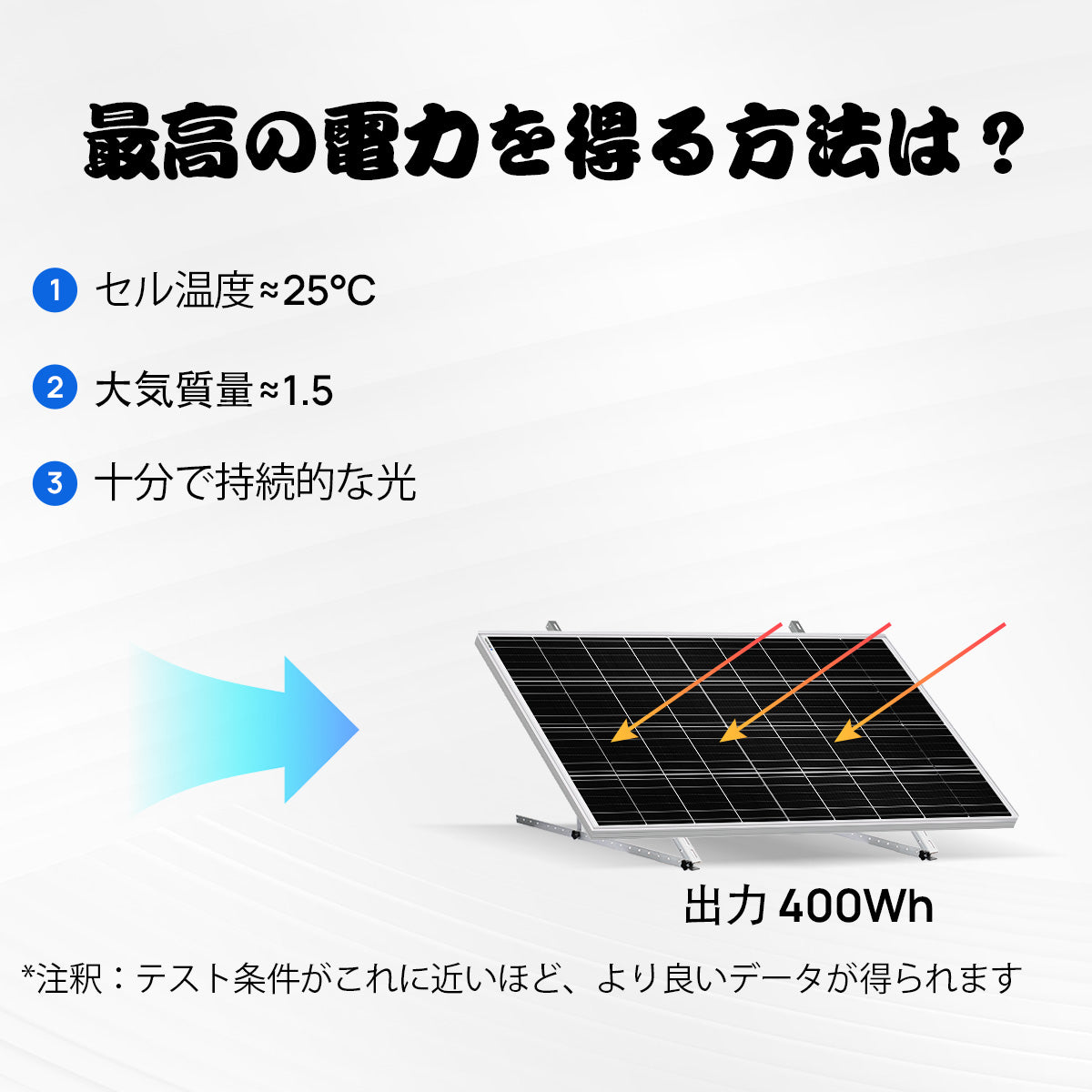

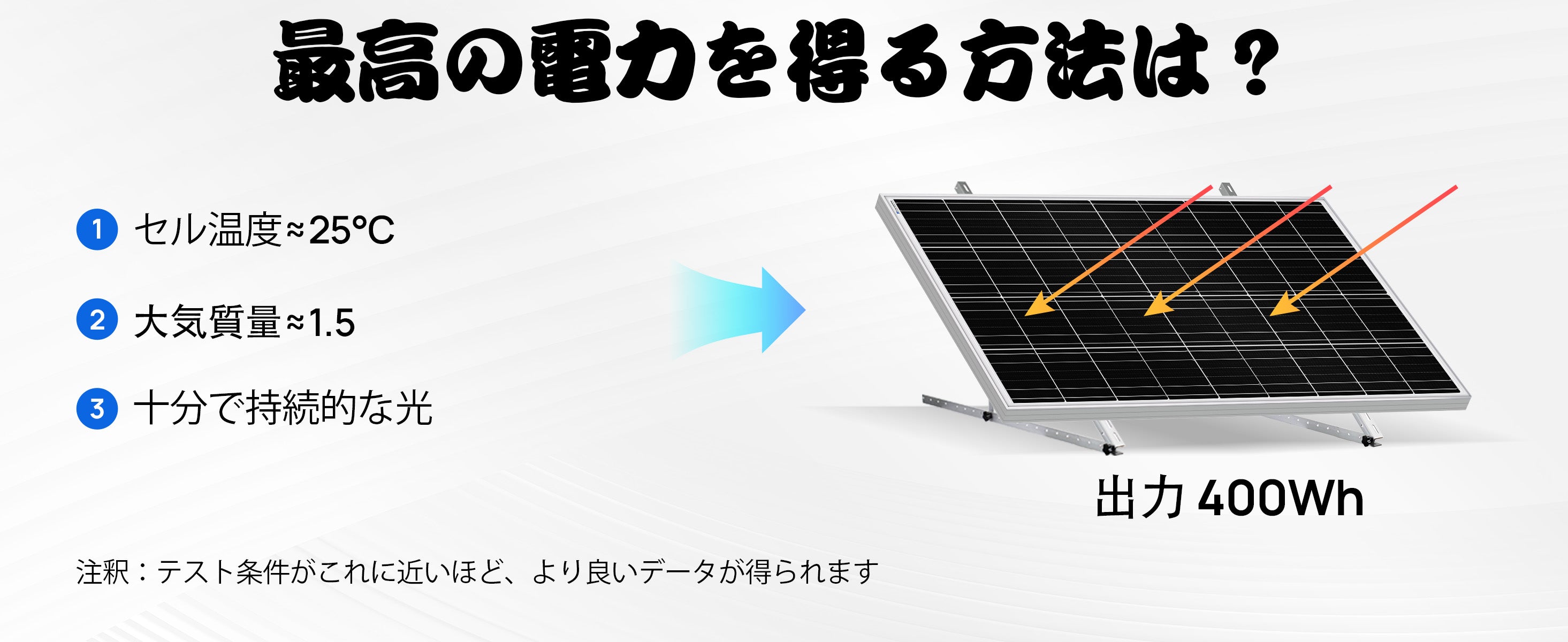

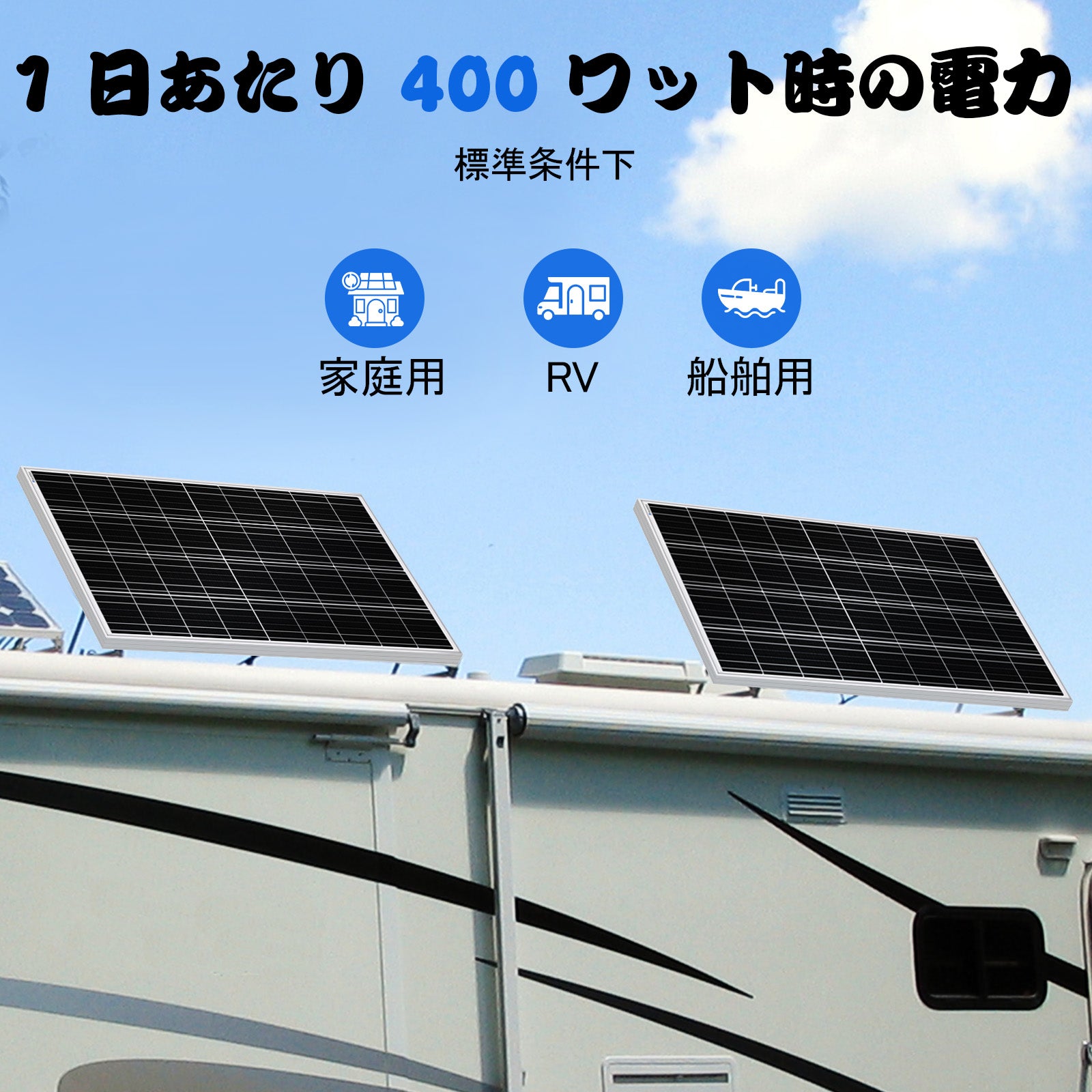

·Guarantee: Daily output 400wh depends on solar usage. After up to 25 years of use, our solar panels are guaranteed to provide more than 80% of the initial power.

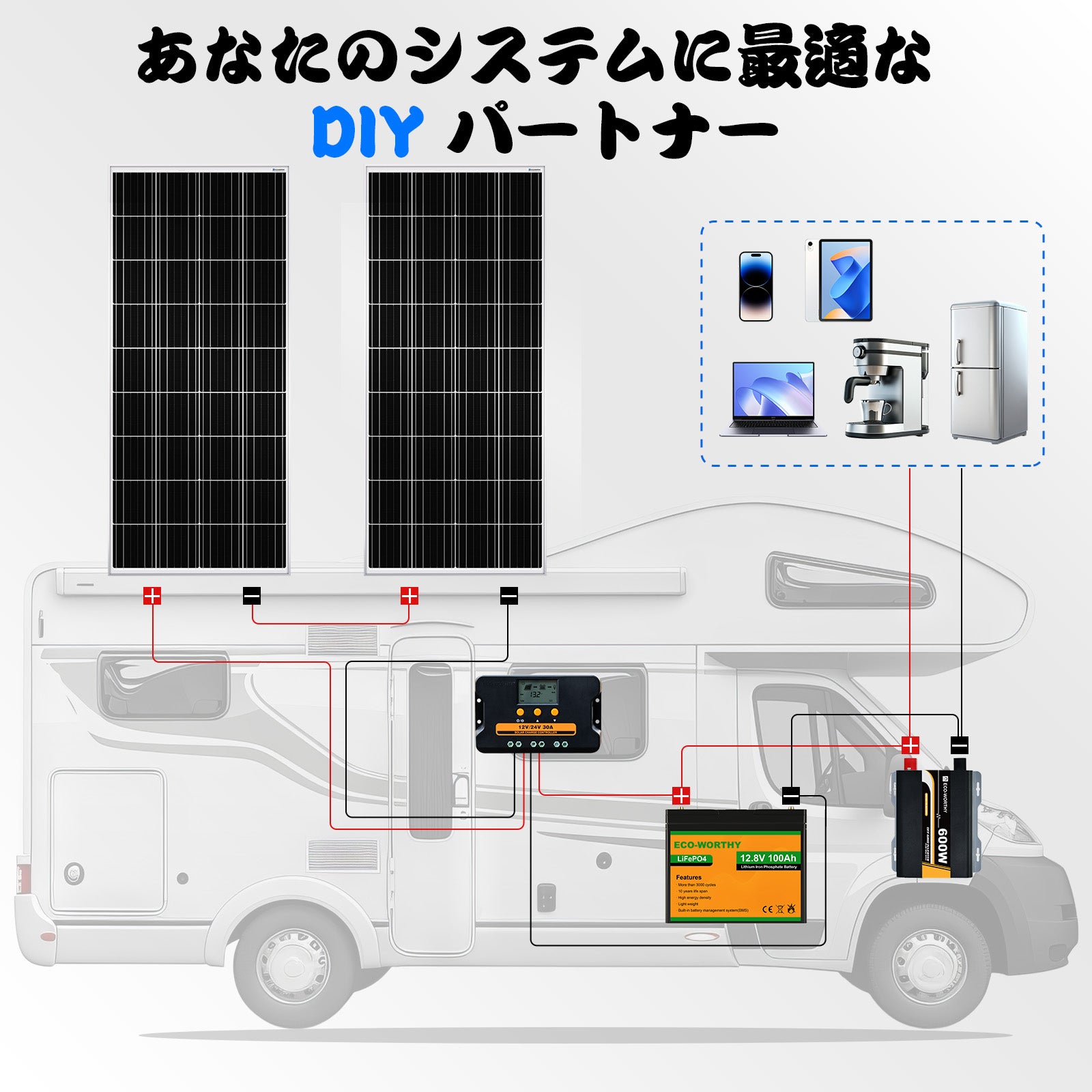

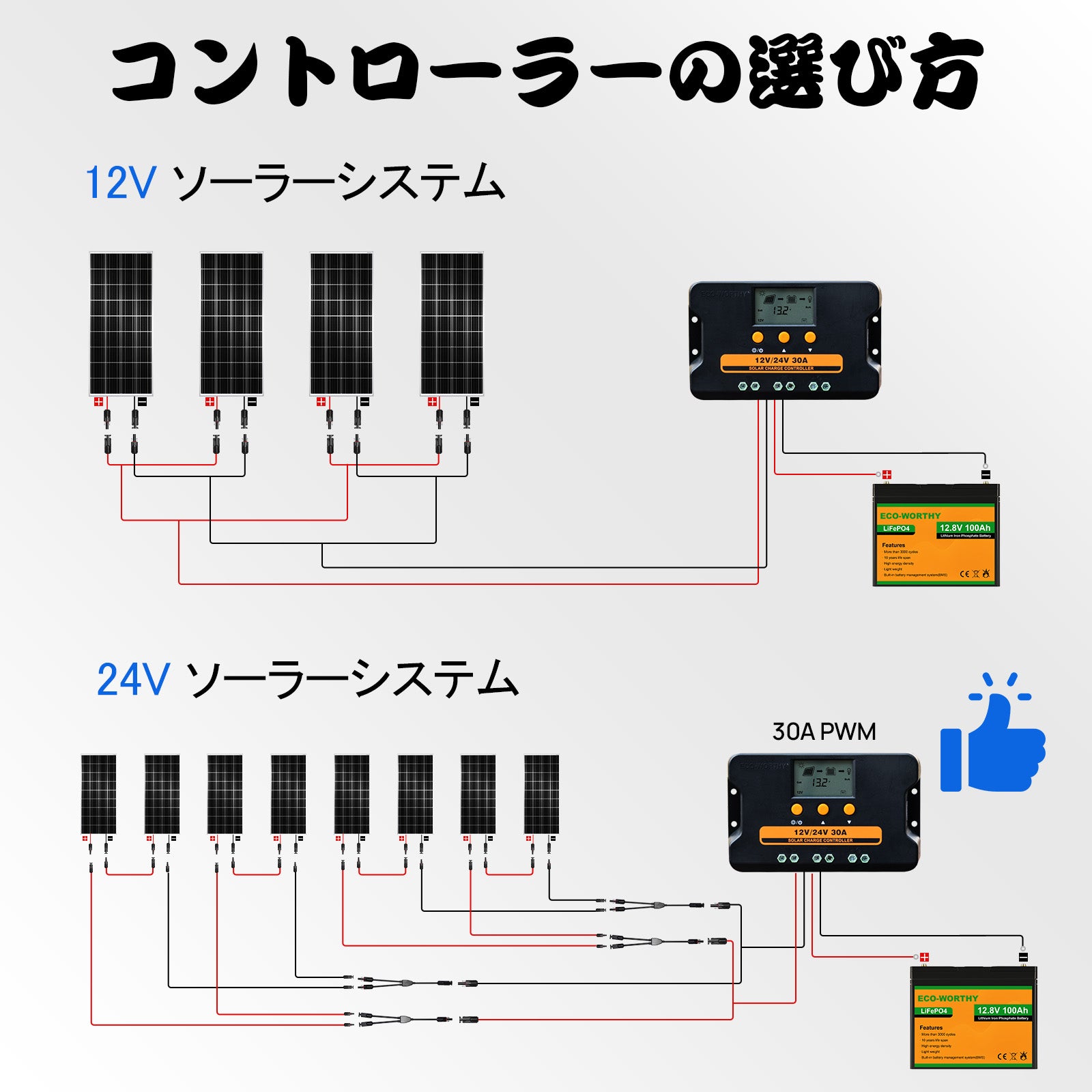

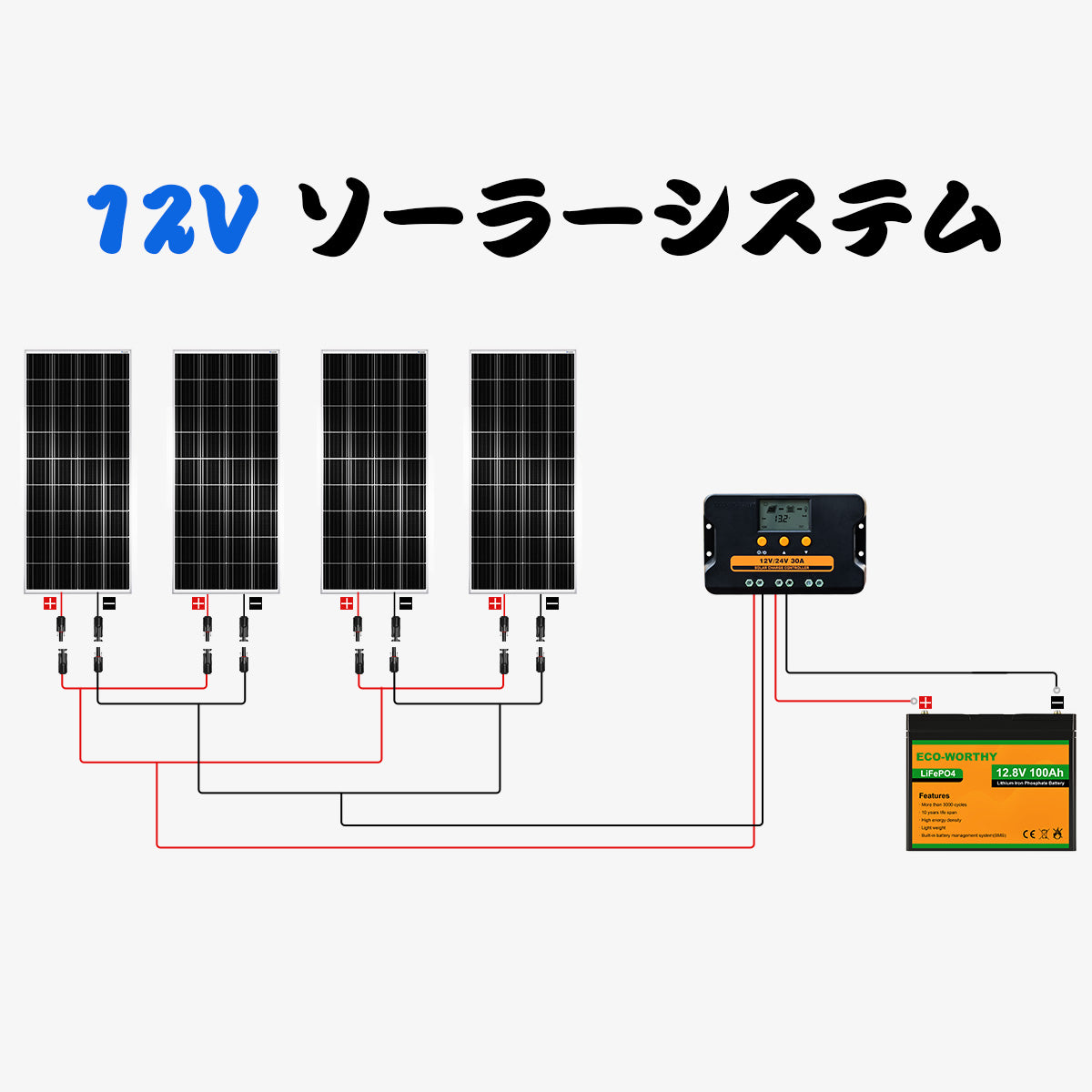

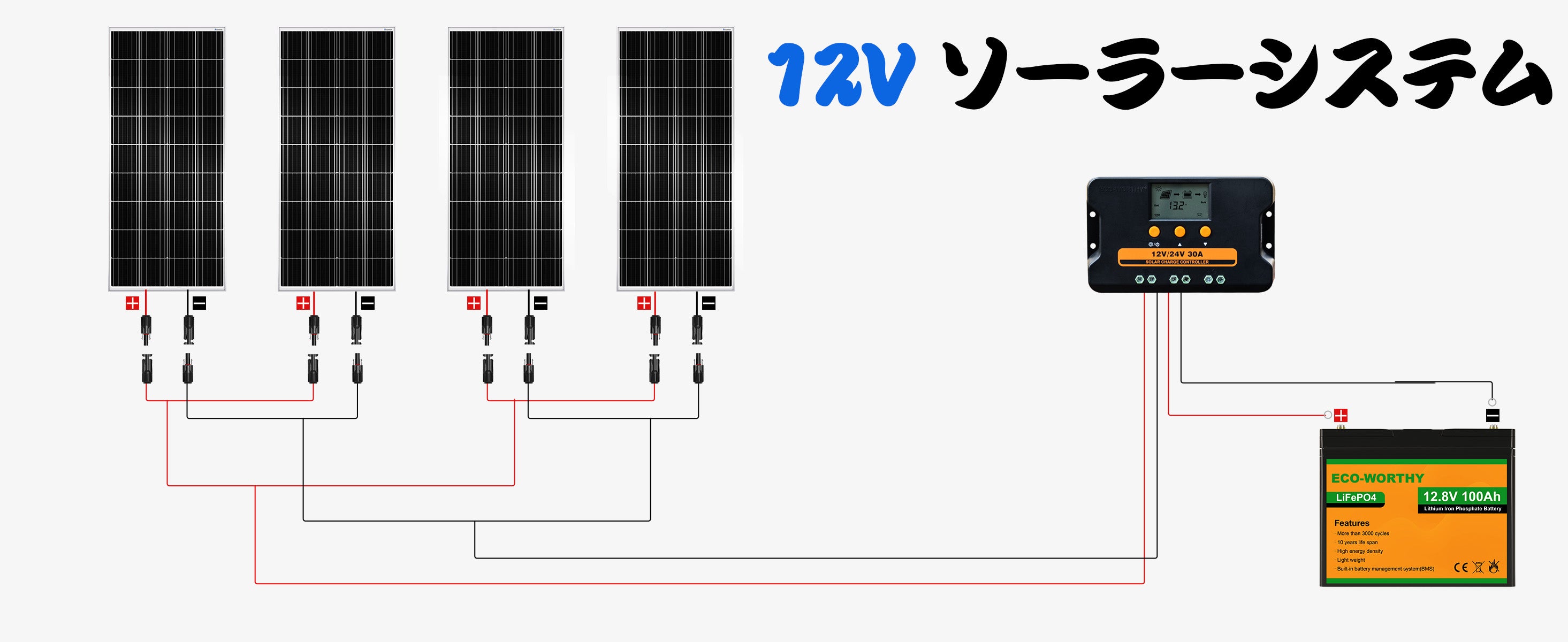

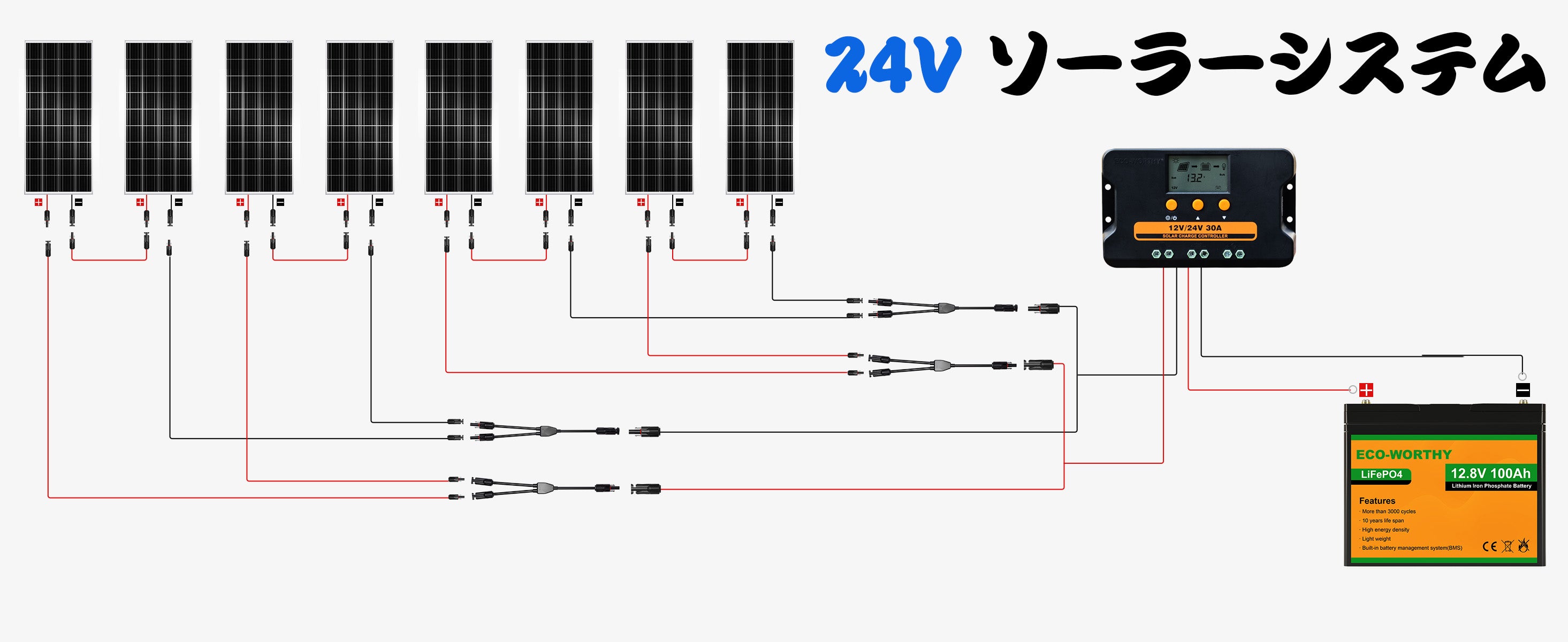

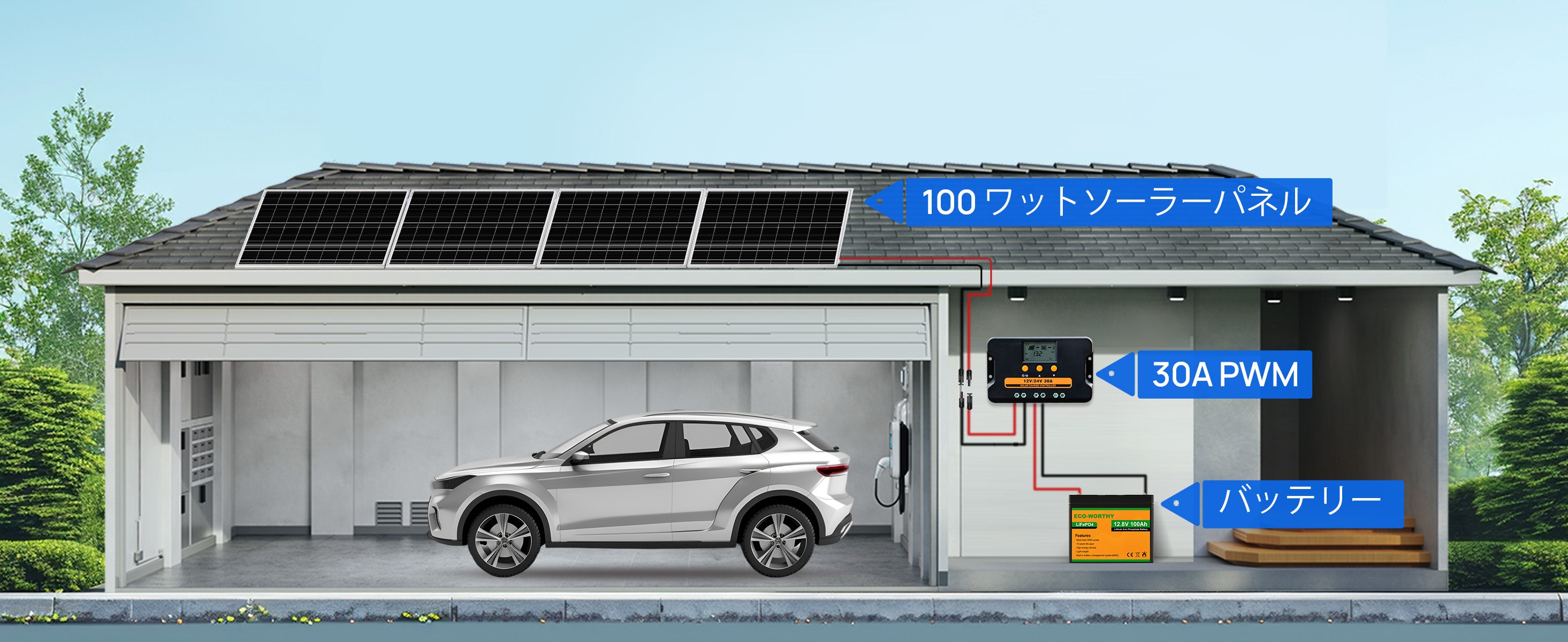

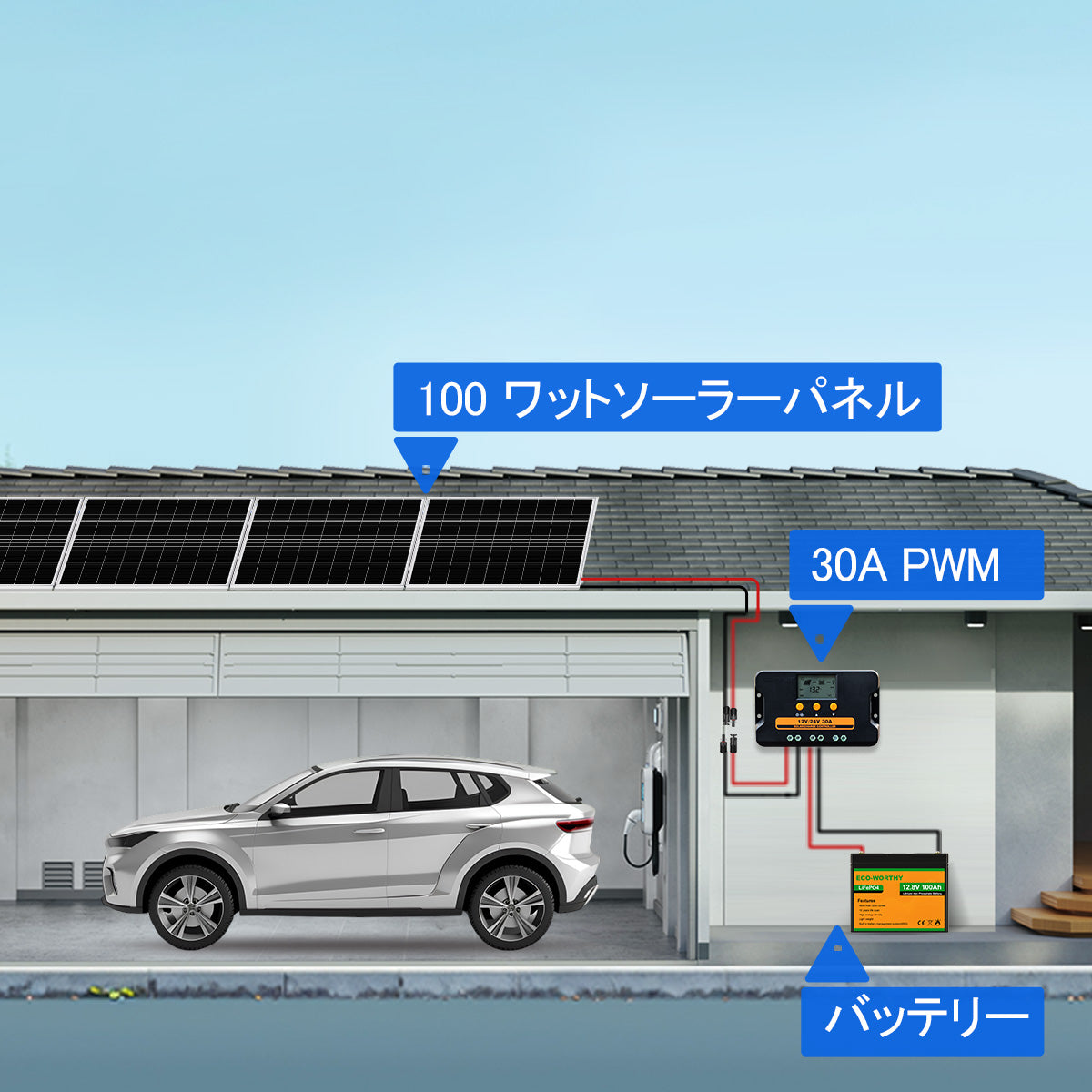

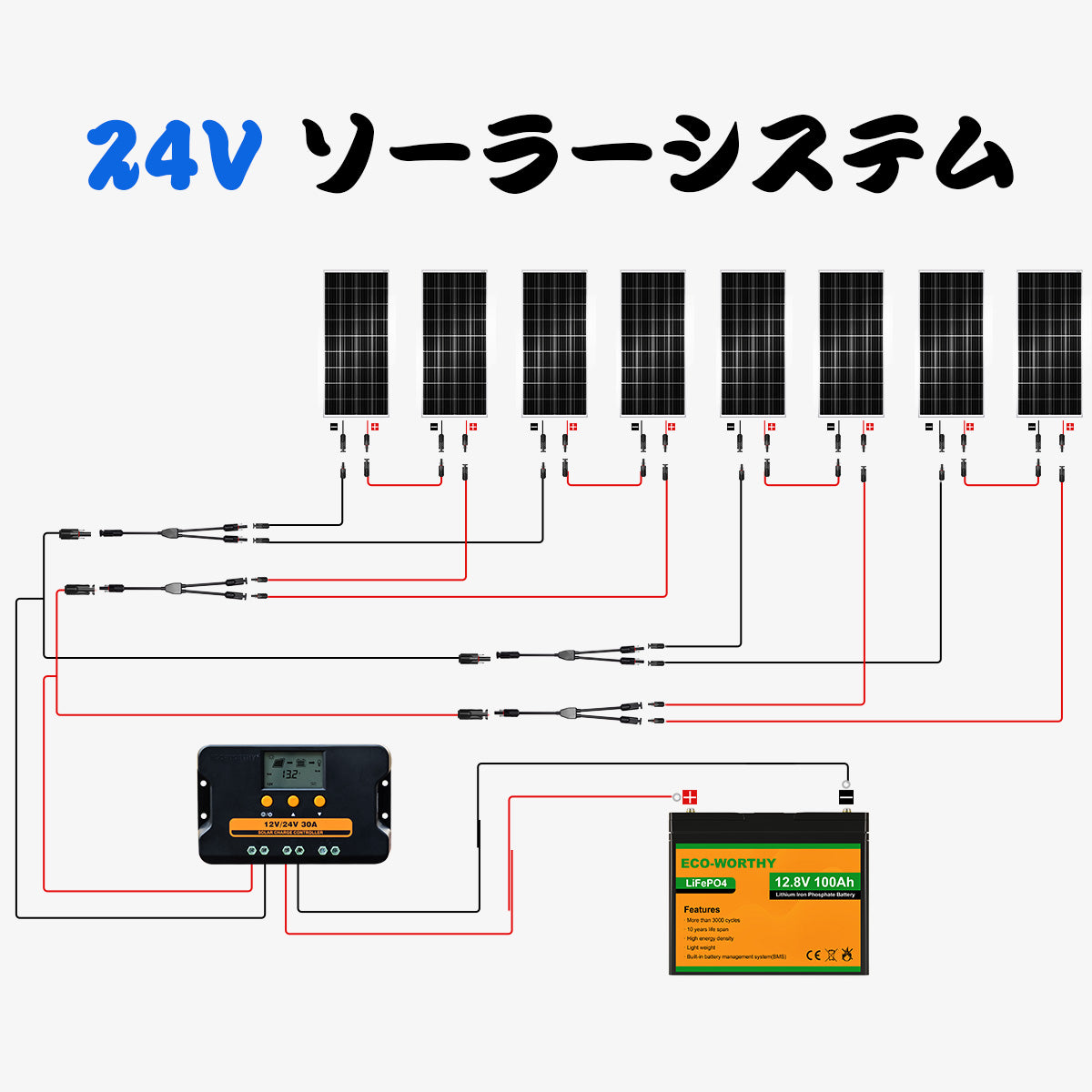

·Versatile: Basic generator component for 12V/24V battery charging for home, garden, RV, boat, and agricultural on-grid, off-grid, and hybrid power systems.

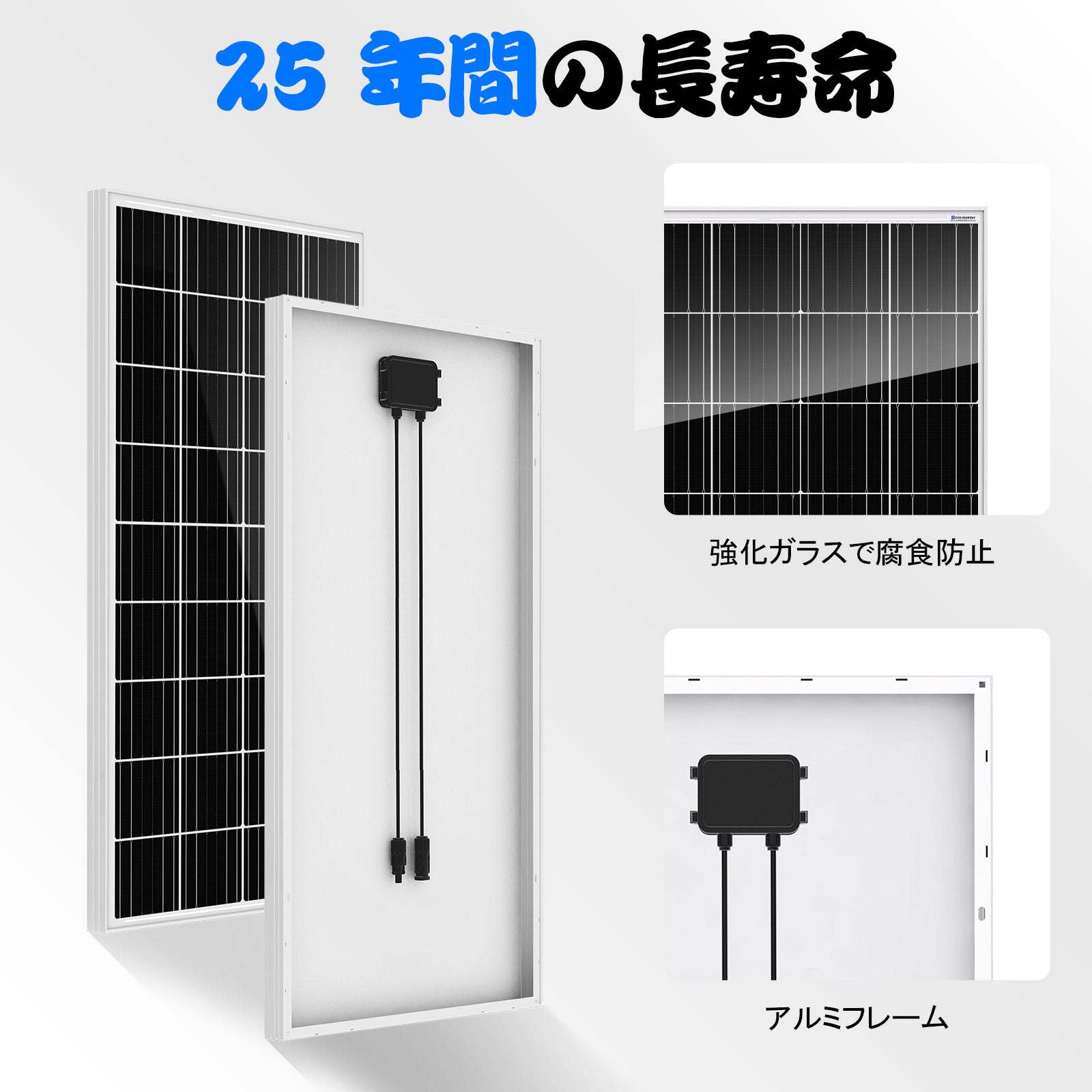

·Durability: Withstand strong winds (2400Pa) and snow loads (5400Pa), the surface is constructed of 3.2mm low iron glass, and the monocrystalline module is framed with 35mm wide aluminum alloy, 2 times more durable than others. ~5mm wide.

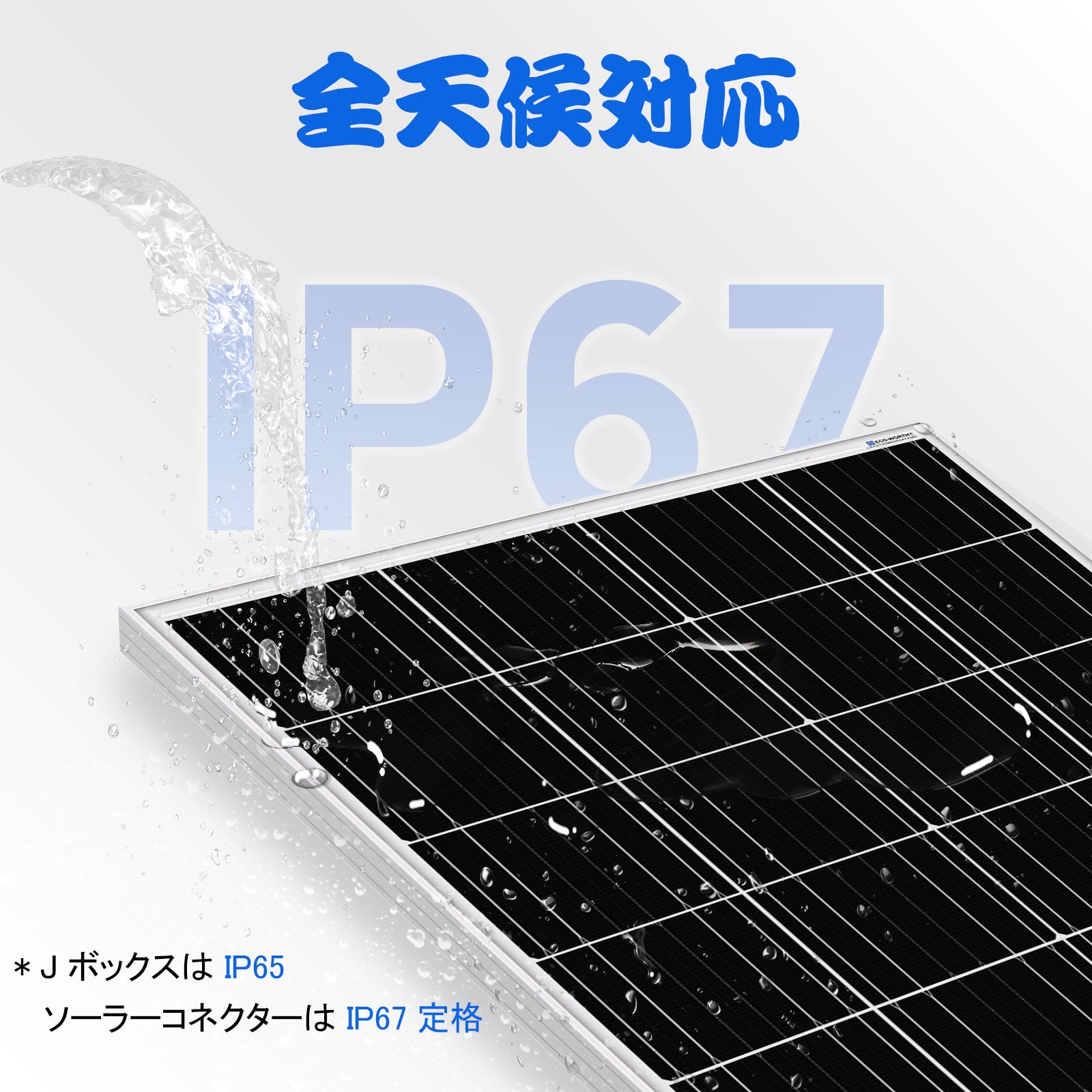

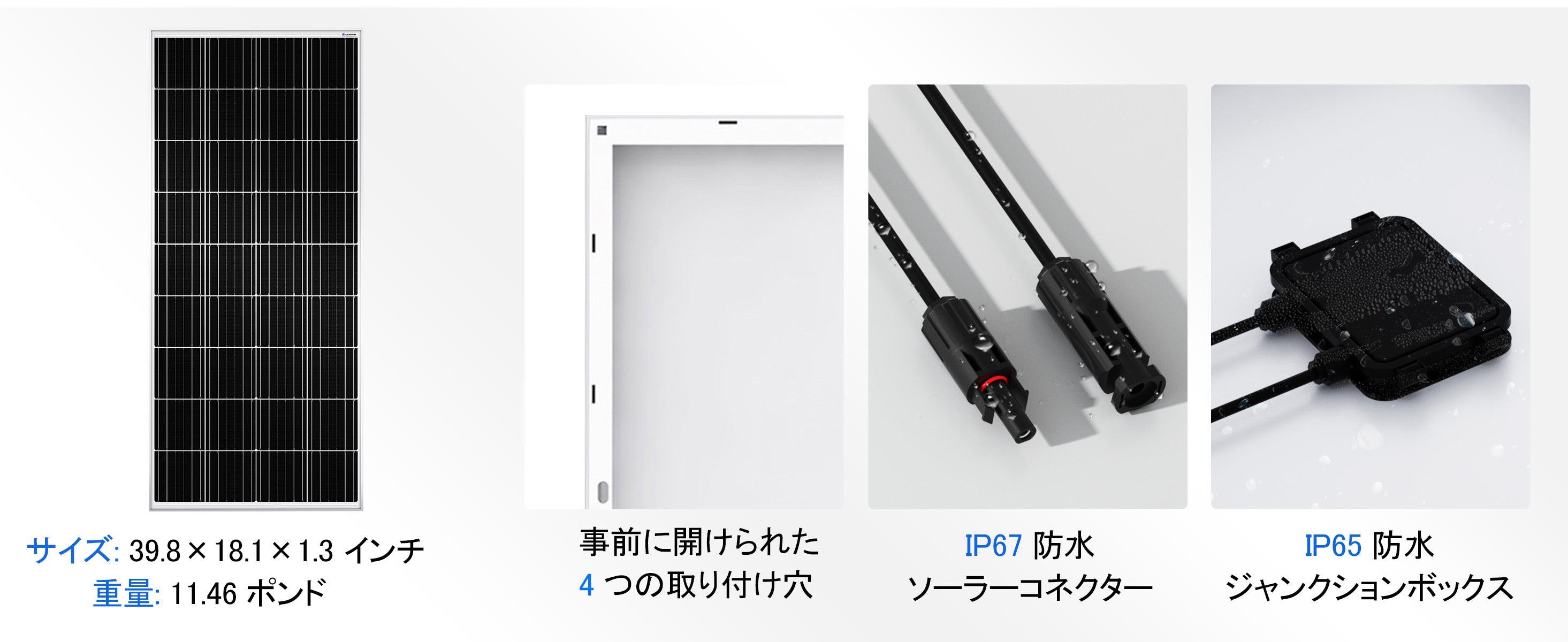

·Features: Each solar panel comes with a pair of 35 inch cables. Bypass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop due to shading and ensure superior performance even in low-light environments.

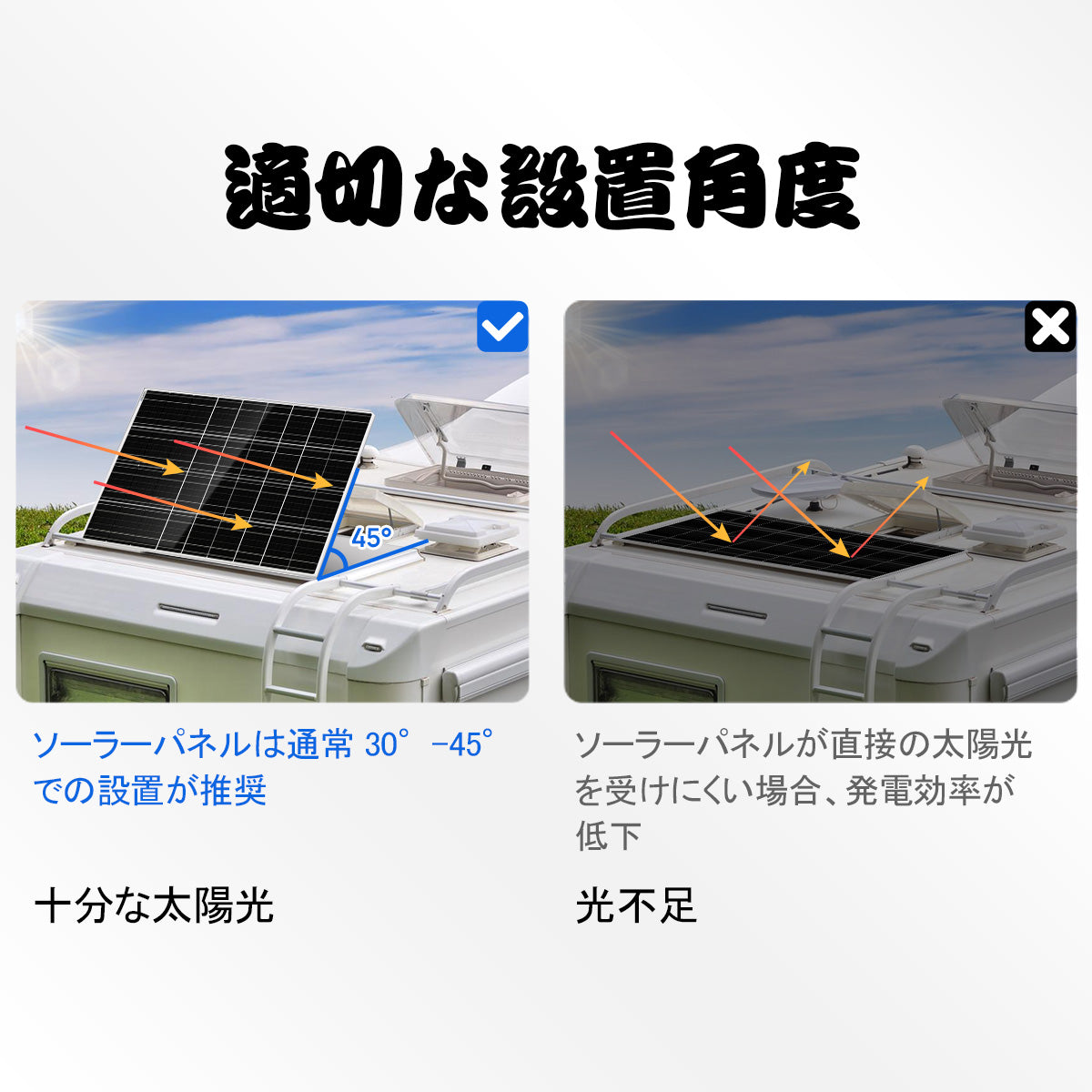

·Easy to install: Connector in the cable with plug-and-play design for quick installation, and pre-drilled holes on the back of the panel allow for quick installation on the roof or bracket.
·Versatile: Basic generator component for 12V/24V battery charging for home, garden, RV, boat, and agricultural on-grid, off-grid, and hybrid power systems.
·Durability: Withstand strong winds (2400Pa) and snow loads (5400Pa), the surface is constructed of 3.2mm low iron glass, and the monocrystalline module is framed with 35mm wide aluminum alloy, 2 times more durable than others. ~5mm wide.
·Features: Each solar panel comes with a pair of 35 inch cables. Bypass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop due to shading and ensure superior performance even in low-light environments.
·Easy to install: Connector in the cable with plug-and-play design for quick installation, and pre-drilled holes on the back of the panel allow for quick installation on the roof or bracket.
Code:
Copy CodeCouldn't load pickup availability

Regular price
¥8,099 JPY
Sale price
¥8,099 JPY
Regular price
¥9,405 JPY
Unit price
/
per

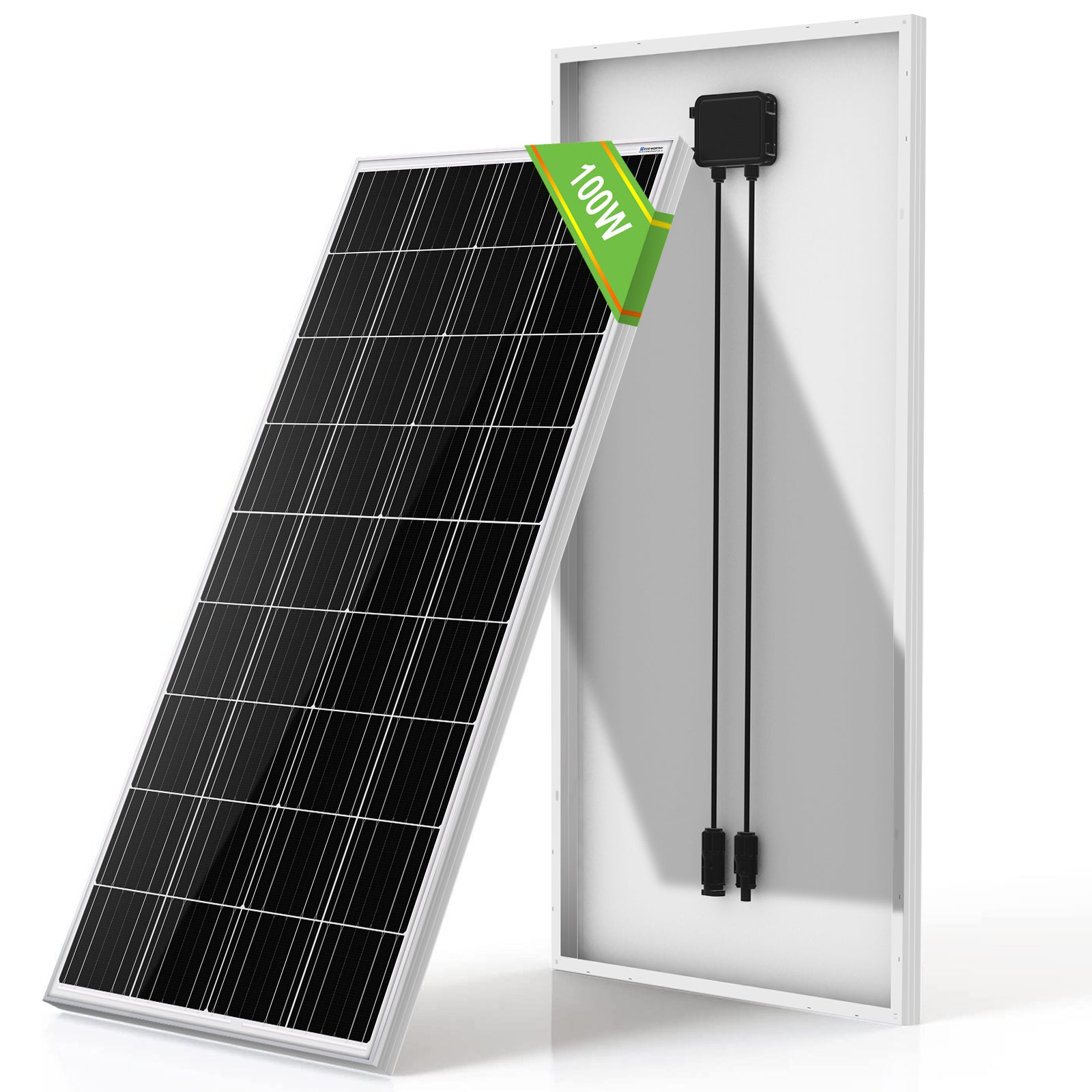

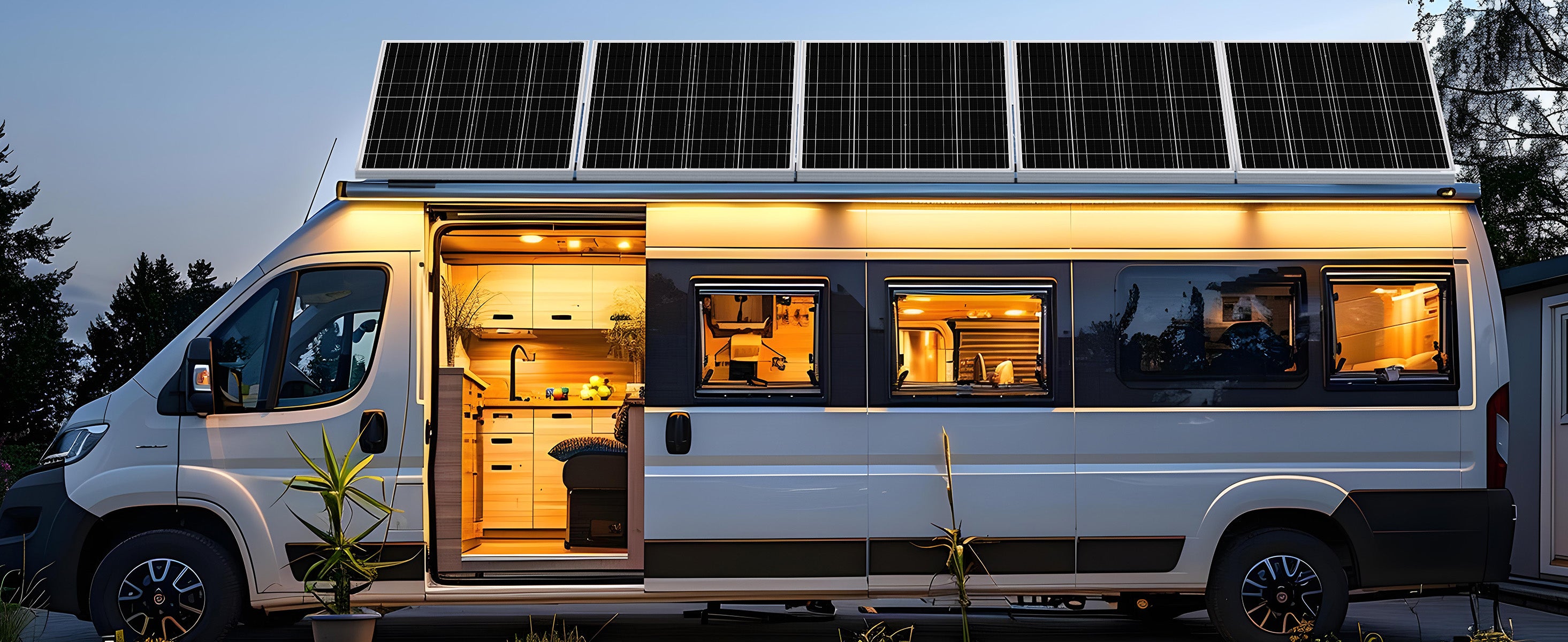

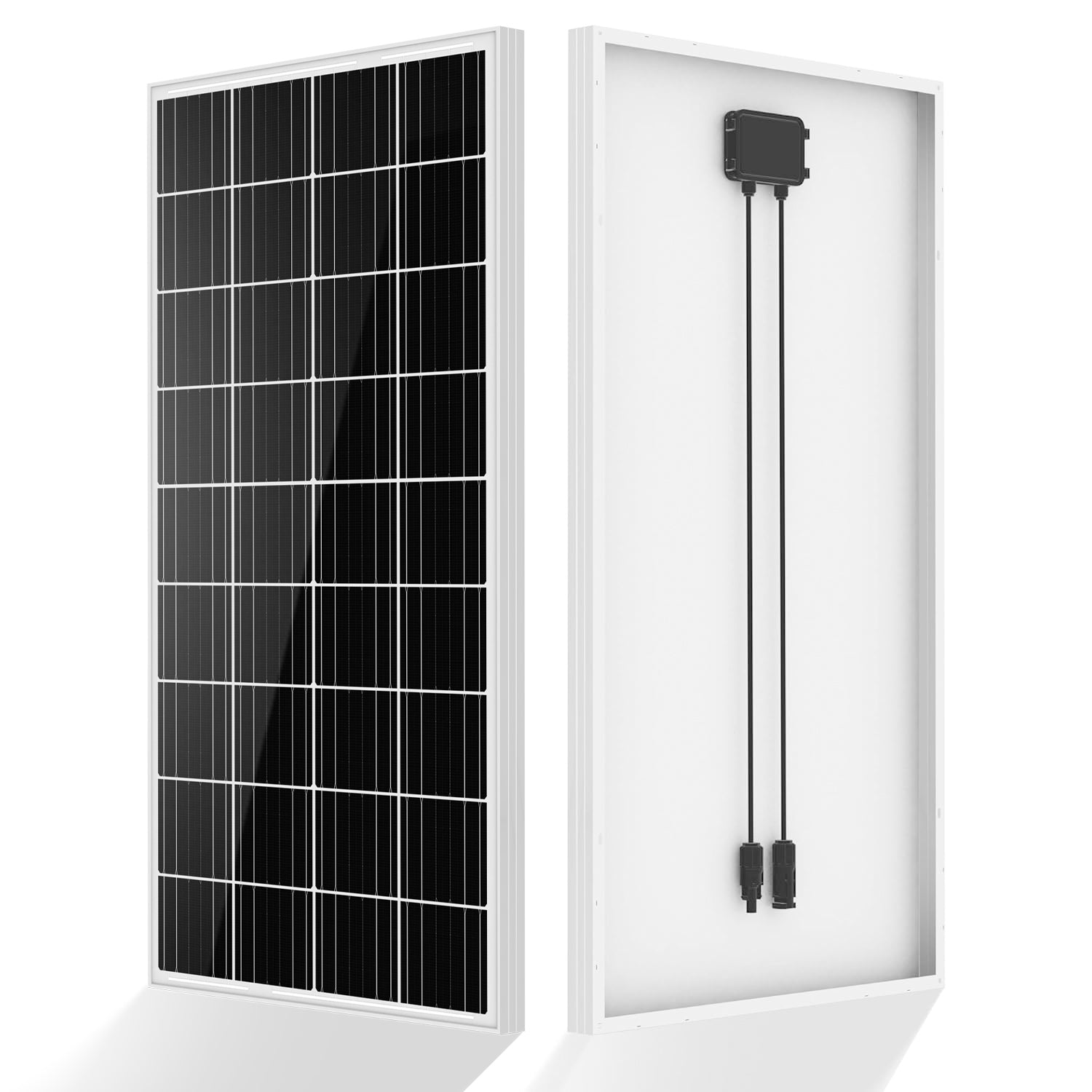

This eco-friendly 100W 12V monocrystalline solar panel is mainly used in off-grid situations such as RVs, boats, sailboats, yachts, trucks, cabins, campers, tents, trailers, golf carts, etc. The daily production of 500WH depends on the availability of sunlight. Each solar panel comes with two 35-inch cables. Bypass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop due to shading and ensure superior performance even in low-light environments. Resistant to strong wind (2400Pa) and snow load (5400Pa), the surface is constructed of 3.2mm low iron glass, and the monocrystalline module is framed with 35mm wide aluminum alloy, 2-5mm wider than other modules is.
| Rated power: 100W | Solar cell: monocrystalline |
| Maximum/Peak Voltage (Vmp): 18V | Open circuit voltage (Voc): 21.6V |
| Short circuit current: 6.11A | Maximum current: 5.55A |
| Output tolerance: ±3% | Isc temperature coefficient: (010+/-0.01)%/℃ |
| Voc temperature coefficient: -(0.38+/-0.01)%/℃ | Temperature range: -40℃ to +85℃ |
| Frame: aluminum alloy frame | Extension cable length: 90cm (2.95ft) |
| Extension cable size: 4mm² (11AWG)/MC4 connector | Weight: 13.14 lbs (5.96 kg) |

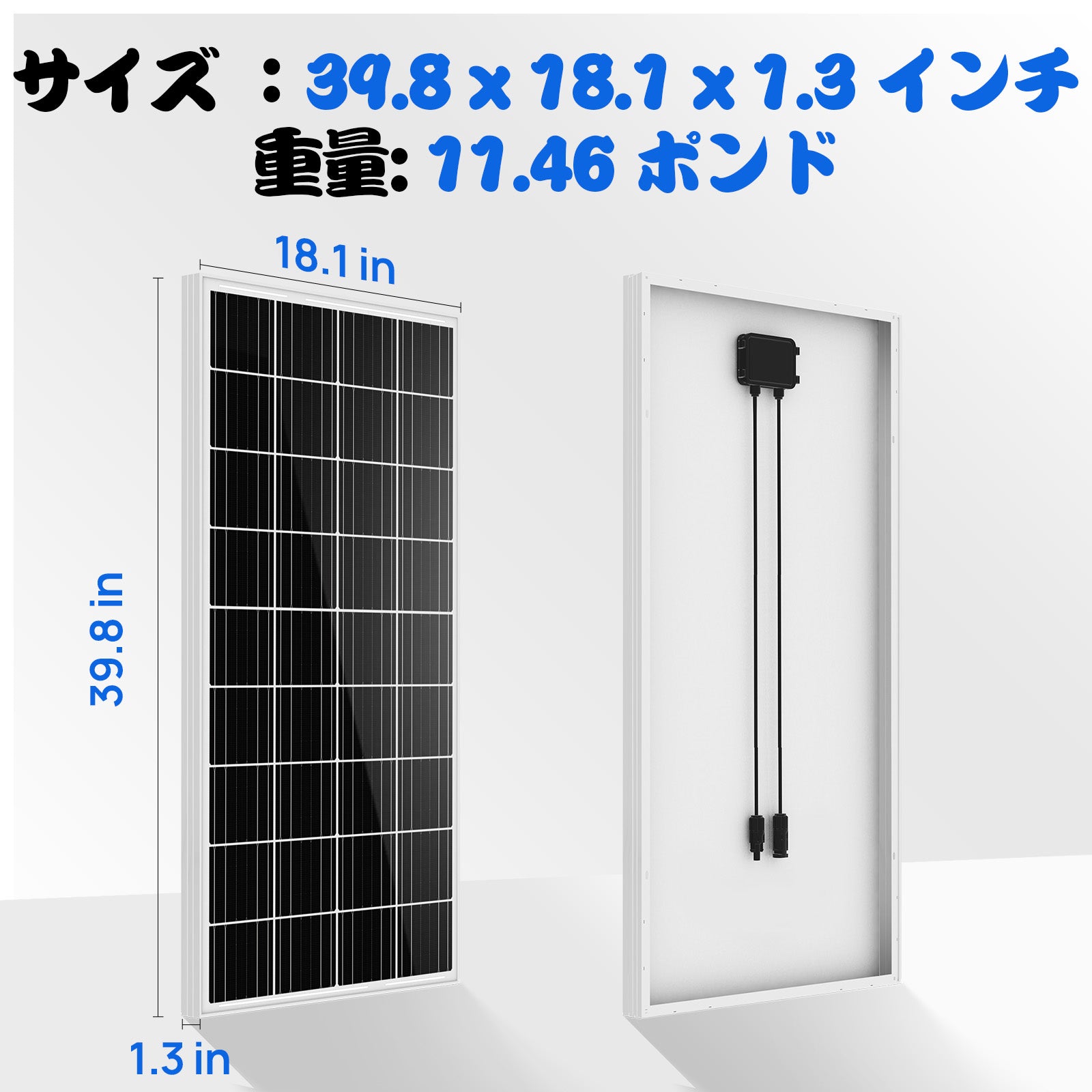

| Size: 1010mm*460mm*35mm |
