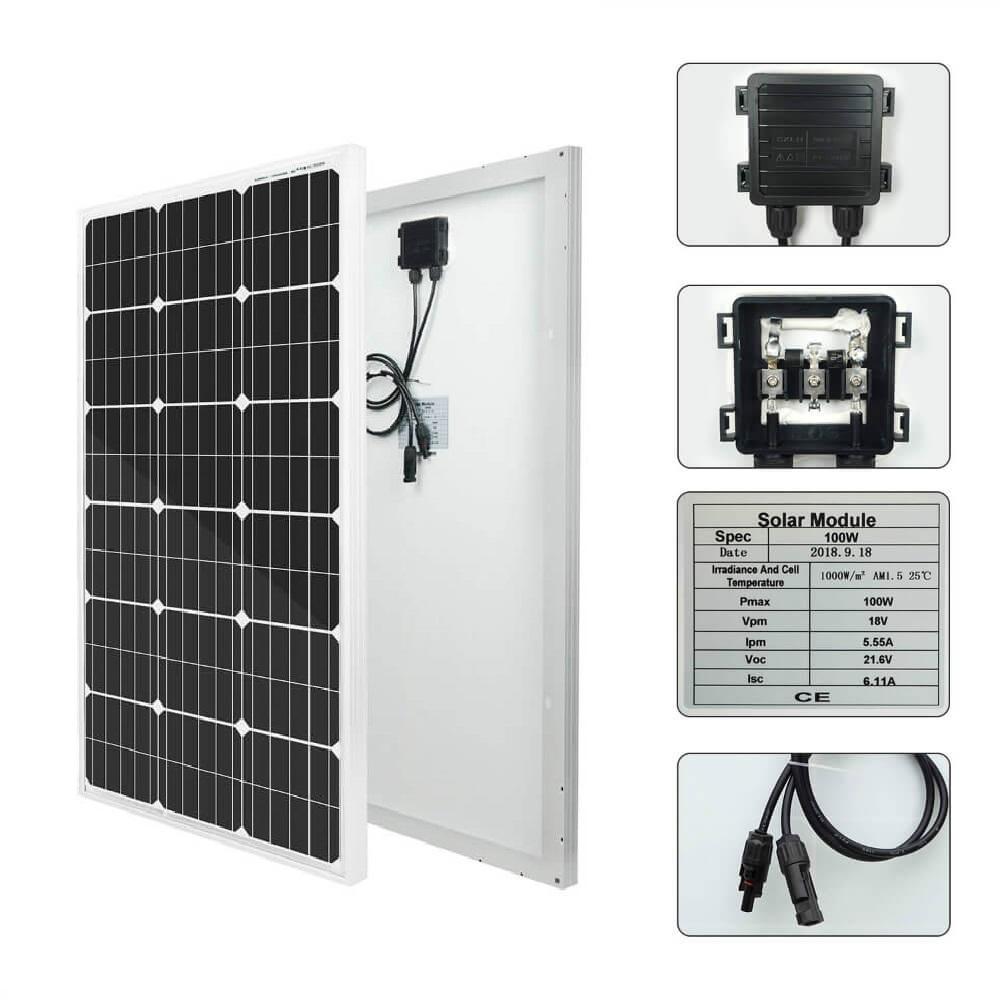

100W mono solar panel Specification
Features:
- Easy installation with pre-drilled hole.
- By-Pass diode minimized the impact of shade.
- Waterproof IP-65 rated junction box: advanced water and dustproof level (complete protection against environmental particles and low-pressure water jets).
- Resistance to salt corrosion and humidity.
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).
- Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
| Specification | |
| Rated power | 100W |
| Voc | 21.6V |
| Vop | 18V |
| Short circuit current (Isc) | 6.11A |
| Working current (Iop) | 5.55A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃ to +80℃ |
| Frame | Heavy duty aluminum |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 1010mm*510mm*35 mm（39.8"*20.1"*1.4") |
| Weight | 8.6kg |
| Warranty | 25-year transferable power output warranty: 5-year/95% efficiency rate; 10-year/90% efficiency rate; 25-year/80% efficiency rate; 5-year material and workmanship warranty |
Applications
ECO-WORTHY rigid 100w mono solar panel is widely used on solar system, caravan, RV, boat, greenhouse, solar pump watering system.
